Compact to operate. Simple to maintain.
The RM 5 is built for daily professional work in smaller spaces. Key components are easy to reach, and routine maintenance is quick and straightforward.

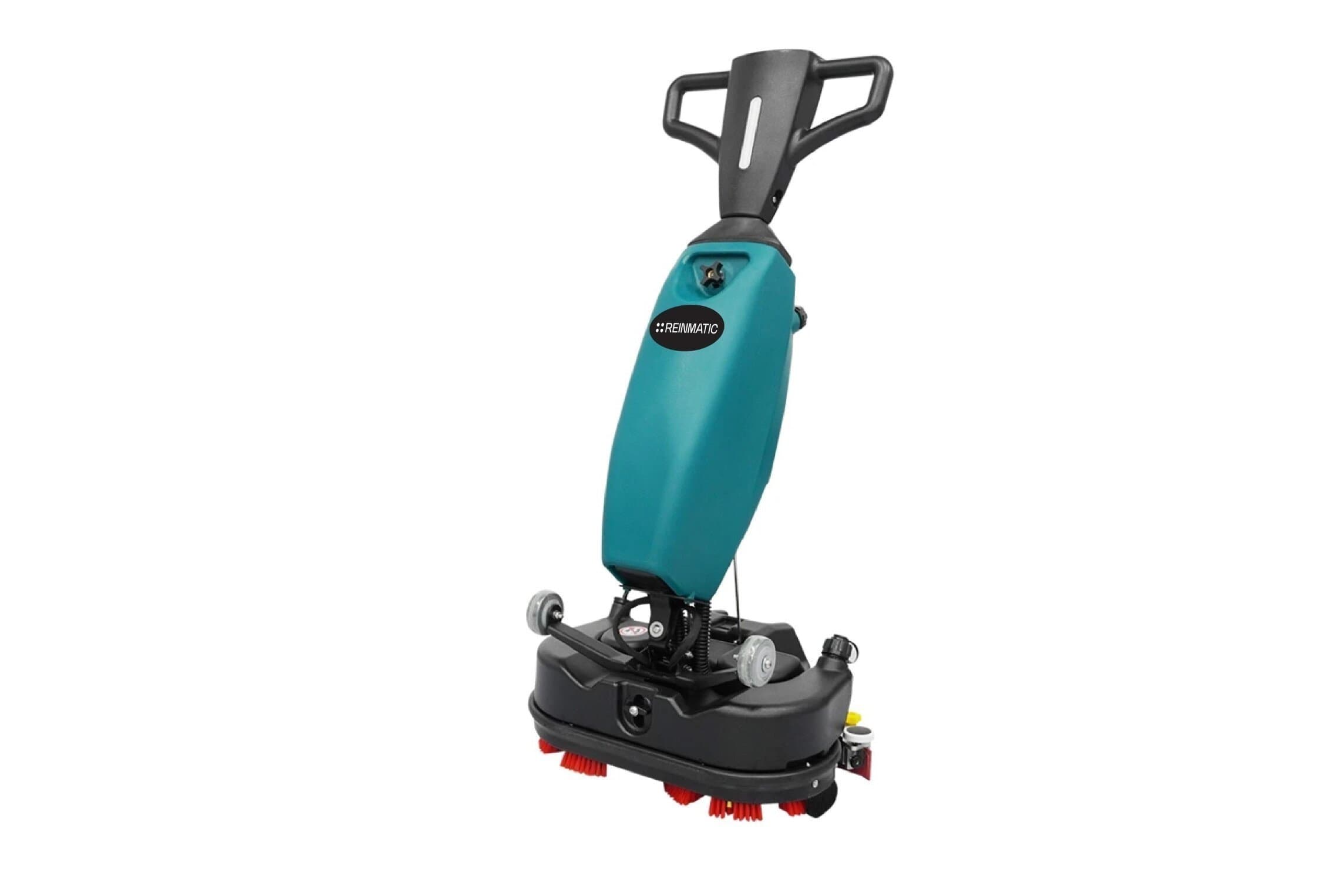

RM 5. Professional cleaning where space is limited.
Key performance
50 cm
Working width
Up to 1,800 m²/h
Productivity
30 kg
Empty weight (no water or battery)
5.1 L clean / 6 L dirty
Tank capacity
Where the RM 5 belongs.

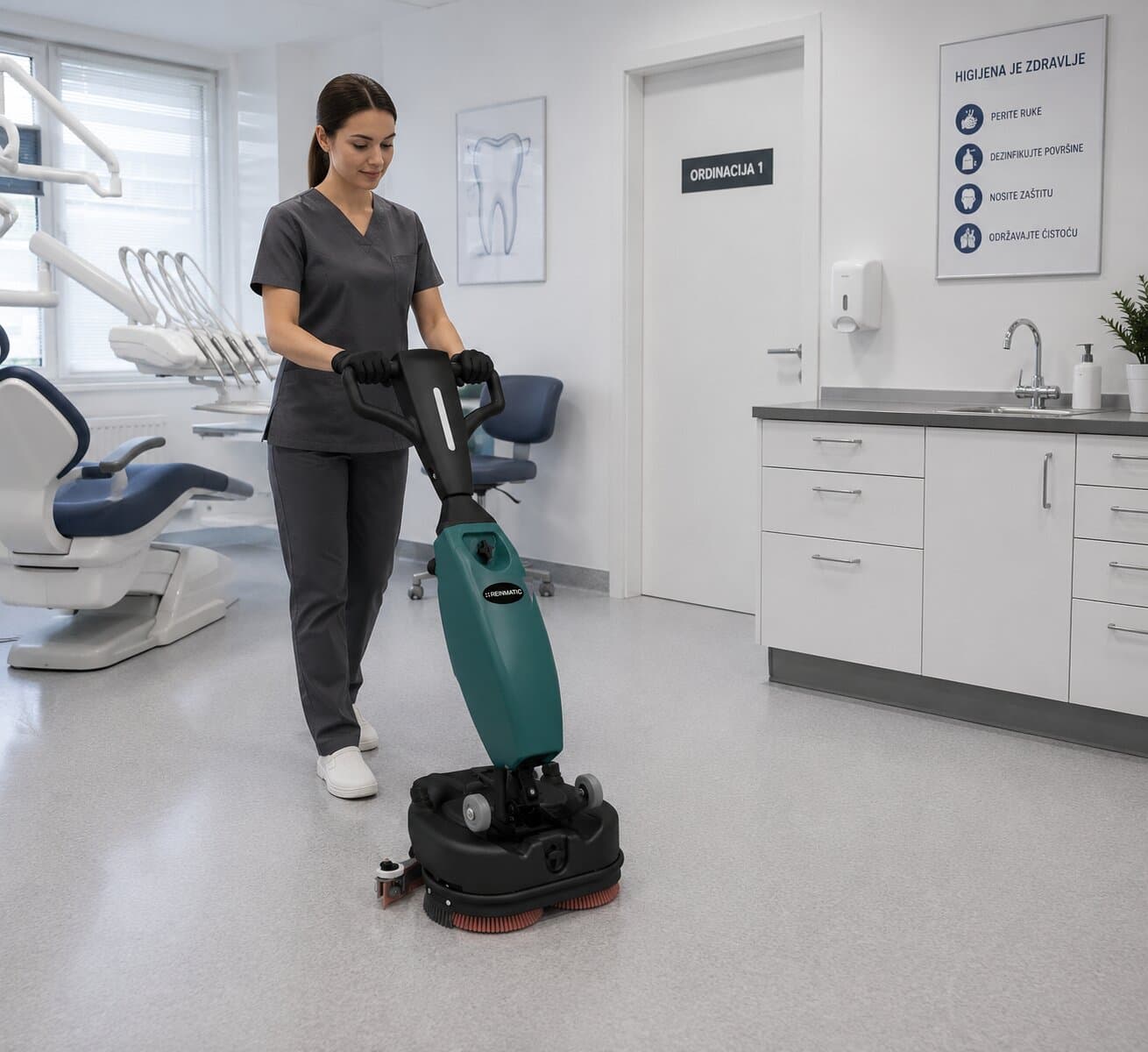

The RM 5 is built for small rooms, narrow routes, and high-value spaces where a full-size machine is not practical. It is ideal for practices, clinics, offices, hotels, wellness areas, small shops, and back-of-house zones.
Applications
- Medical practices and clinics
- Pharmacies and labs
- Hotels and wellness centers
- Offices and workspaces
- Retail outlets
- Sanitary and back-of-house areas

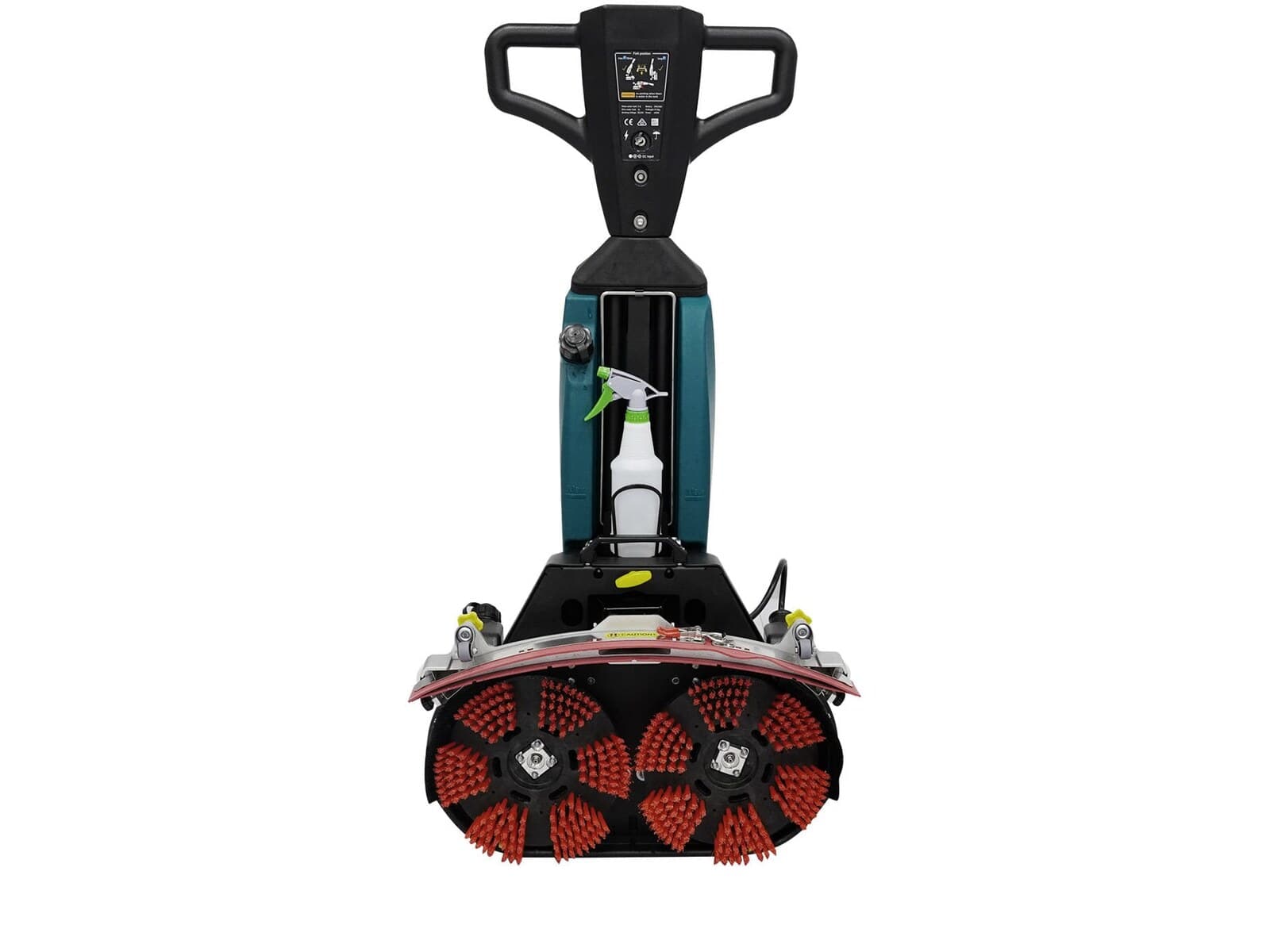

Easy to run. Simple to service.
Easy to maintain, light to move, and built for daily professional work. The RM 5 puts key components within quick reach and rolls cleanly through standard aisles and doorways.

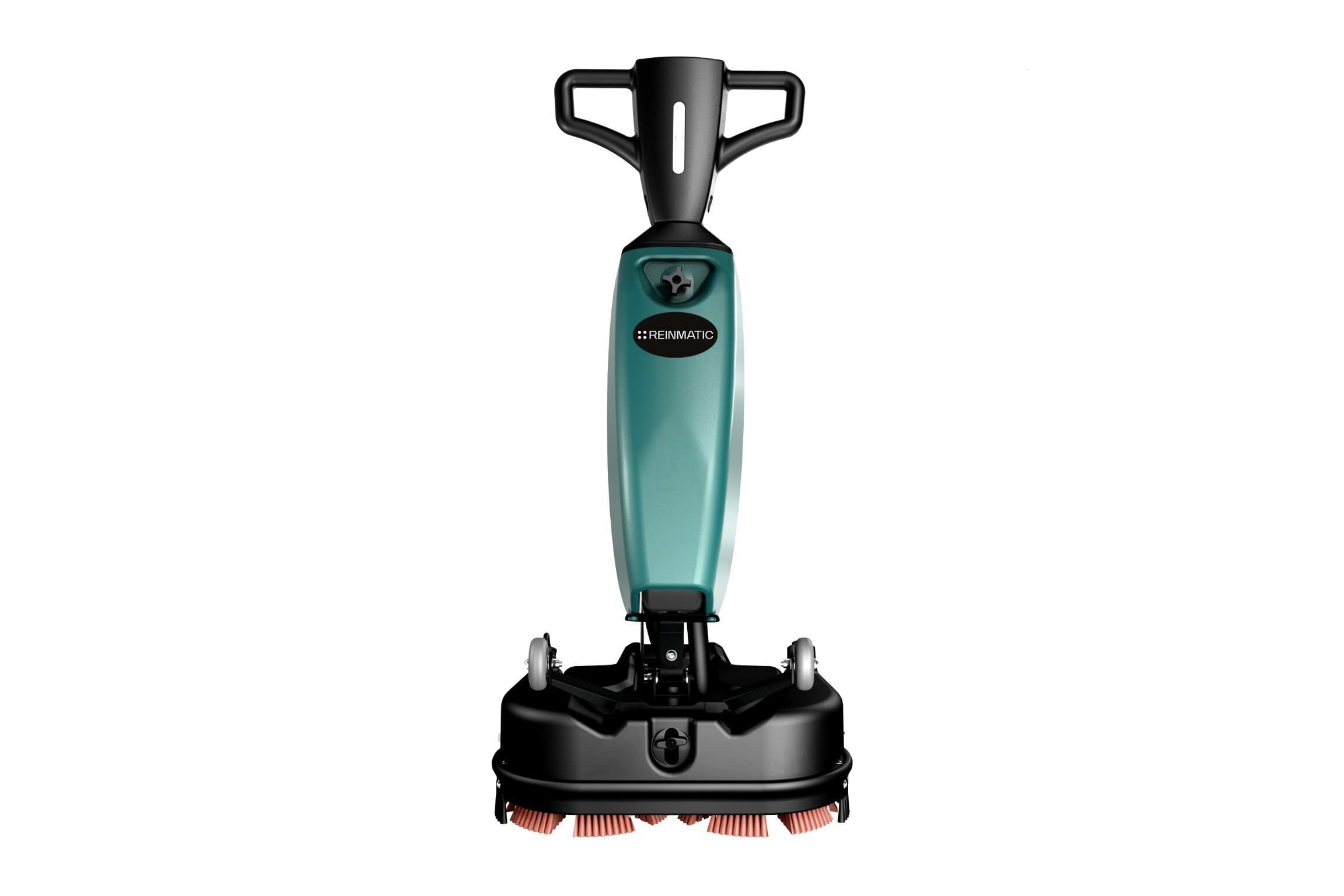

Two tanks. Clean water and dirty water kept separate.
Separate clean- and dirty-water tanks keep the cleaning process hygienic from start to finish. At 5.1 L and 6 L, they deliver consistent results with no dirty water ever re-applied to floors you've already cleaned.

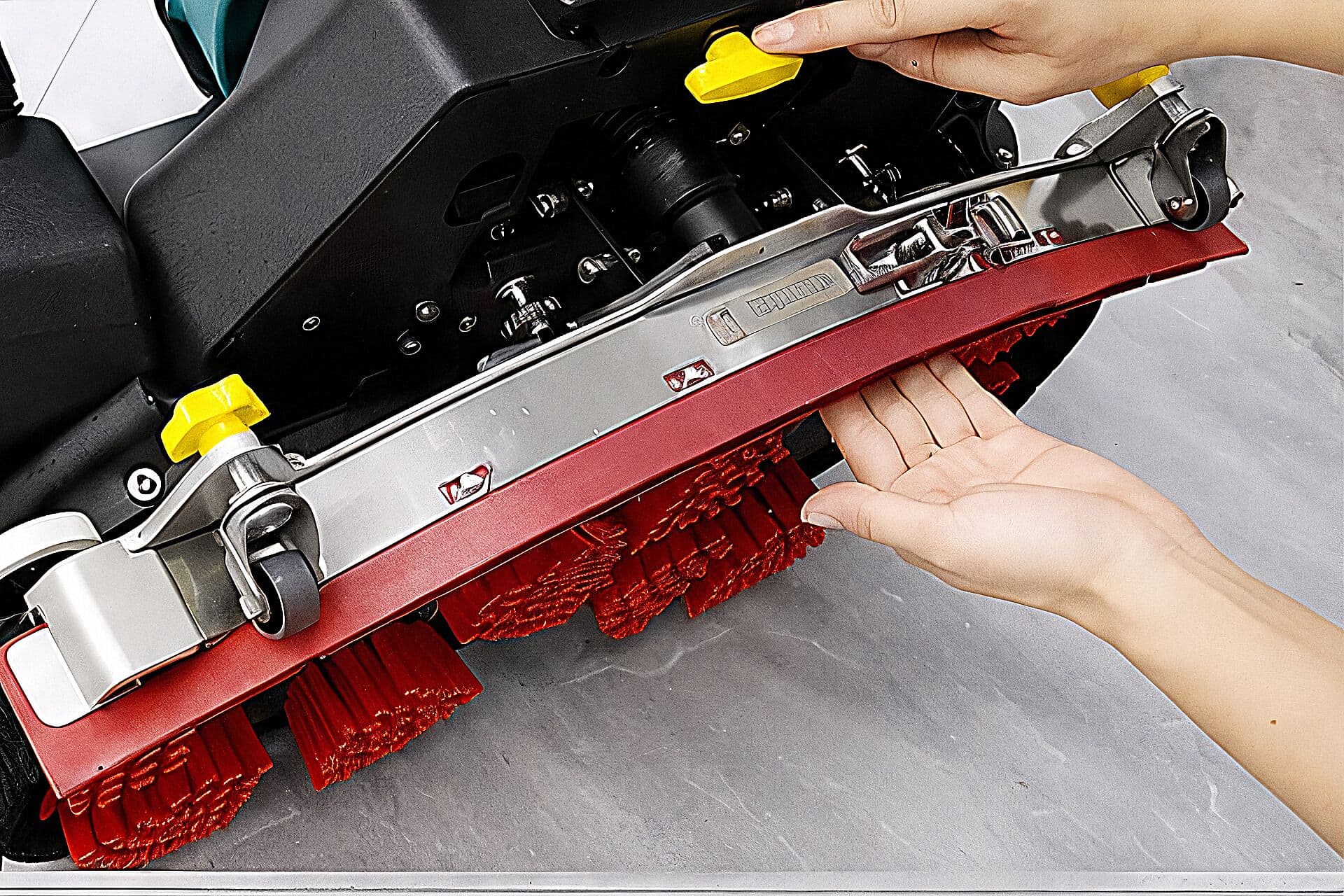

50 cm scrubbing path. 56 cm water recovery.
A 56 cm squeegee pulls water up cleanly behind the 50 cm working path, leaving floors clean, dry, and safe to walk the moment the machine passes.
30 kg. Easy to move between zones.
At just 30 kg, the RM 5 is easy to carry, quick to move between work zones, and simple to handle through a full shift. Ideal for facilities where mobility and flexibility matter as much as cleaning quality.
Professional output in a small machine.
With up to 1,800 m²/h, the RM 5 pairs compact dimensions with professional performance — cleaning spaces efficiently where larger machines simply don't have the room to work.
Functions and intelligent features
The full capability set from the Reinmatic catalog — every onboard and intelligent function the RM 5 offers.
Functions and capabilities
- Scrub and dry the floor in a single pass
- LCD display and control panel
- Overflow protection system
- Dirty-water tank protection system
- Magnetic brush system
- Safety sensors in the handle
- Safety worklight
- Squeegee lock system
- Direct water feed through the brushes
- Stepless brush adjustment
- Quiet operation for indoor spaces
- Intelligent water-consumption control
- Battery and electronics protection
- Quick-maintenance access to components
- Optimized brush-pressure distribution
- Compact build for work in tight spaces
Intelligent features
- Intelligent water-consumption control
- Battery and electronics protection
- Automatic suction-motor protection
- Automatic shutoff at full tank
- Direct water feed through the brushes
- Intelligent brush-pressure distribution
- Compact build for work in tight spaces
- Quick-maintenance access to components
- Optimized airflow in the suction system
- Fast battery charging (around 2.5 h)
- Optimized energy consumption
- Low noise level for hotels, offices, and healthcare facilities
Advantages
- Compact and simple to operate
- Professional cleaning of smaller areas
- Easy storage and transport
- Low water consumption
- Fast battery charging
- Quiet operation for indoor spaces
Specs by system
Technical specifications
Power
- Power source
- Battery 24V Lithium-ion
- Power supply
- 24 V – 14 Ah Li-ion / charger 24 V – 6 A, 2.5 h
- Max runtime
- 70–80 min
Mechanical
- Working width
- 50 cm
- Suction width
- 56 cm
- Brush speed
- 0–330 rpm
- Brush pressure
- 30 / 32 kg
Dimensions
- Length
- 56 cm
- Width
- 39 cm
- Height
- 114 cm
- Weight (empty)
- 30 kg
Cleaning
- Clean water tank
- 5.1 L
- Dirty water tank
- 6 L
- Tank separation
- Two-tank, clean/dirty
- Productivity
- 1,800 m²/h
Electronics
- Brush motor
- 250 W × 2
- Suction motor
- 200 W
Compliance
- Standards
- ISO 9001, CE, RoHS
- Catalog number
- RM 600162
- Barcode
- 3873516001628
Gallery
See the RM 5.
Included with every RM 5.
Every RM 5 ships ready to work: a 14 Ah Lithium-ion battery, a 24 V – 6 A charger (2.5 h charge time), 2 × 25 cm brushes (50 cm total working width), a pad and pad holder, and a 560 mm LINATEX squeegee blade — all matched to the machine.
Request the accessories list →- Battery
- Charger
- Brushes
- Pads
- Squeegee rubber
Configure your RM 5.
Tell us about your facility, floor type, and cleaning route. We will recommend the right accessories and prepare a quote.
