Independent of charging
A 36.3 kW Perkins diesel engine and a 68 l fuel tank deliver up to 20 hours of continuous work at just 3.2 l/h — a full shift, and then some, on a single fill.

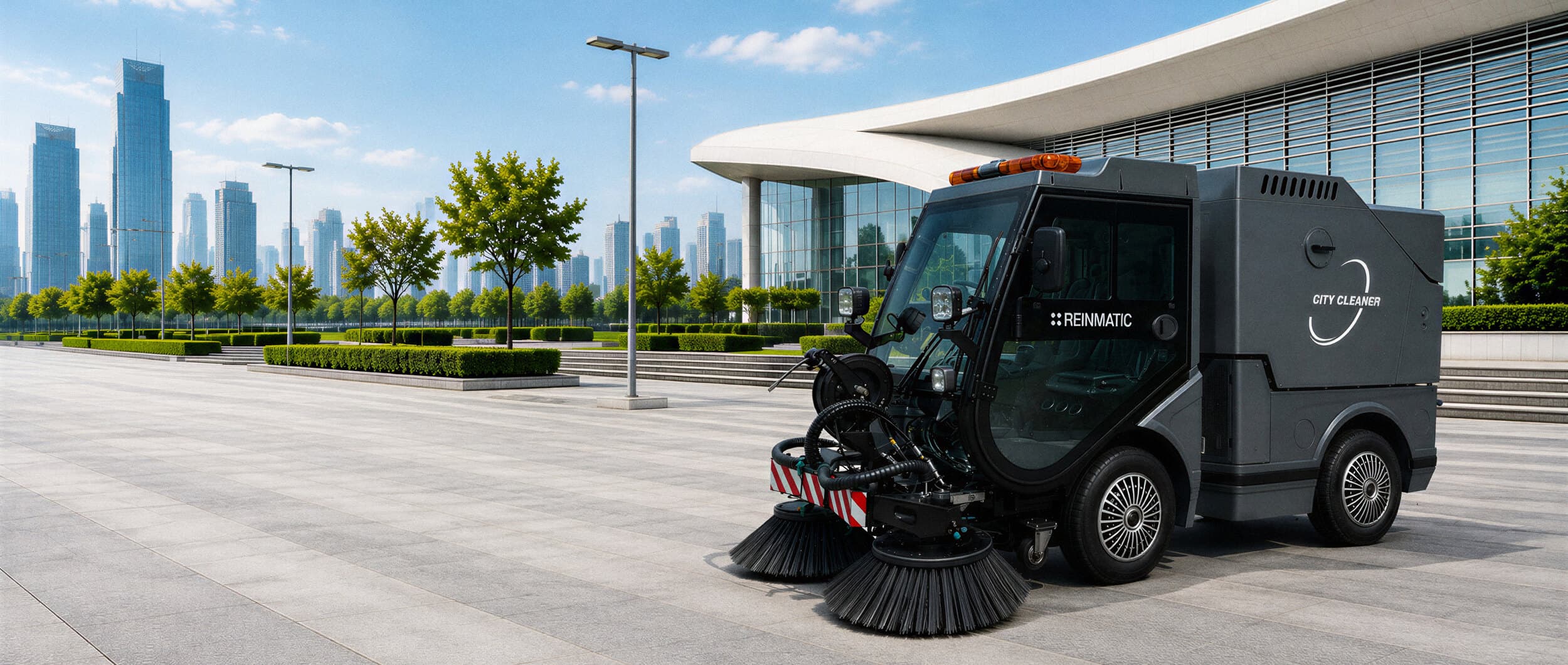

SRM 1500. Diesel power for the whole route.
Key performance
1.5 m³
Waste container
36.3 kW
Perkins diesel engine
up to 24,400 m²/h
Cleaning capacity
26 km/h
Top speed
Where the SRM 1500 belongs.
The SRM 1500 is the compact diesel machine in the REINMATIC municipal program — built for streets, sidewalks, car parks, industrial zones, logistics centers and public spaces where diesel remains the more dependable choice than charging infrastructure. A working width of 1,600 to 2,400 mm, a 1.5 m³ waste container and a 300 l water tank keep it running for long stretches — up to 20 hours on one tank of fuel. Hydraulic four-wheel drive and articulated steering hold it steady on any surface. The two-person cab lets an operator and a helper work the same route.
Applications
- City streets and sidewalks
- Car parks and access roads
- Industrial zones and logistics centers
- Squares and pedestrian areas
- Municipal yards and depots
- Routes with no charging infrastructure
Zero emissions isn't the only answer. Sometimes diesel is the smarter one.
The SRM 1500 covers sweeping, collection and washing without depending on a charger or any electrical infrastructure — a dependable pick for fleets and routes where electric range isn't practical.
36.3 kW, 4×4, up to 20 h of work
The four-cylinder Perkins diesel (model 404EA-22, 2.216 l) drives hydraulic four-wheel drive — with no charging to plan around mid-shift.
1.5 m³ of waste, two rotating brushes
A 1.5 m³ waste container and two Ø850 mm rotating disc brushes clear a working width of up to 2.4 m at 96 % cleaning efficiency and a capacity of up to 24,400 m²/h.

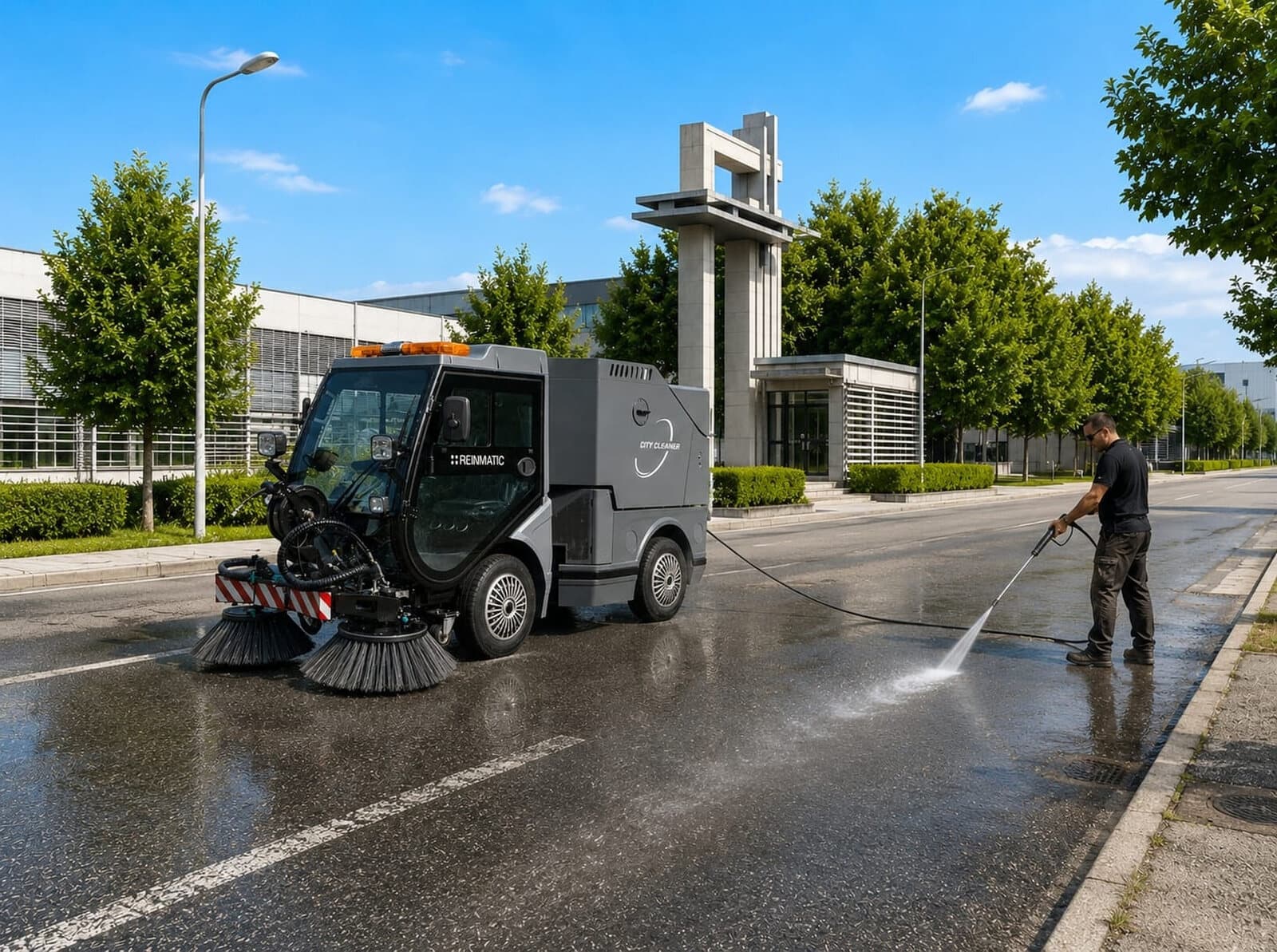

High-pressure gun — standard equipment
The 300 l water tank feeds a high-pressure water gun (up to 140 bar, 8.3 l/min, 10 m hose) — nothing extra to buy.

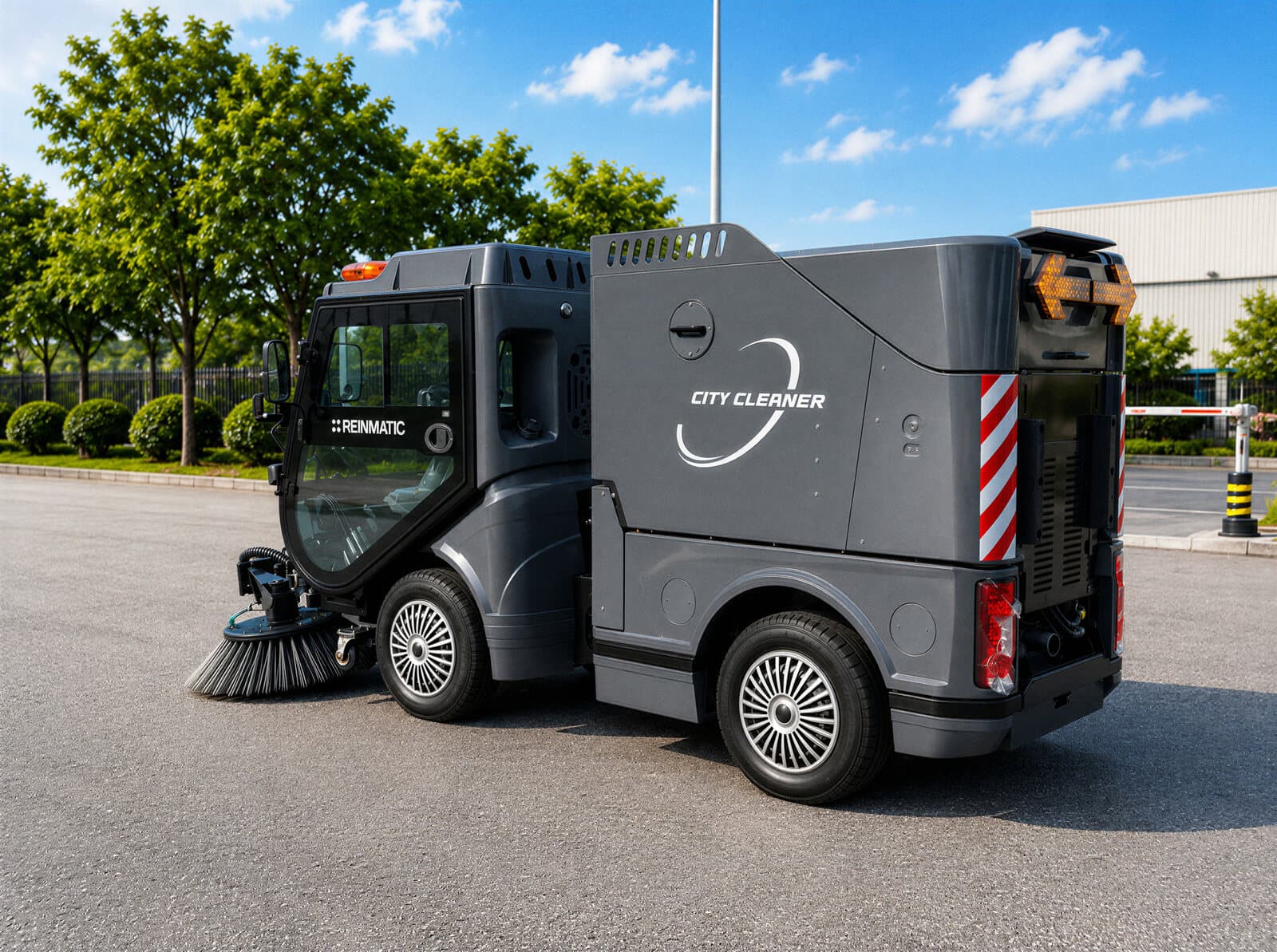

Cab for two
Articulated hydraulic steering, a 26 km/h top speed and gradeability up to 20 % — operator and helper work the same route.
A year-round machine
Modular attachments (high-pressure washing / salt spreader / snow plough) turn the SRM 1500 into a municipal vehicle for every season.
Functions and equipment
Hydraulics, diesel drive and standard equipment that doesn't arrive later.
Functions and equipment
- Diesel drive (Perkins)
- Hydraulic 4×4 drive
- Articulated steering
- Two Ø850 mm rotating disc brushes
- High-pressure water gun
- Two-person cab
Technical advantages
- Hydraulic four-wheel drive holds grip and traction on any surface, including grades up to 20 %.
- Articulated steering makes the machine easy to manoeuvre and precise to work on narrow streets and at intersections.
- A 68 l fuel tank at 3.2 l/h gives up to 20 hours of continuous work — many times longer than a single charge on a battery municipal machine.
Specs by system
Technical specifications
Engine
- Manufacturer and type
- Perkins, four-cylinder, model 404EA-22
- Rated power
- 36.3 kW @ 2,800 rpm
- Displacement
- 2.216 l
- Recommended working speed range
- 1,600–1,800 rpm
- Fuel
- diesel (light diesel)
- Fuel consumption at work
- 3.2 l/h
- Fuel tank capacity
- 68 l
Drive, steering and tyres
- Drive
- hydraulic, four-wheel drive (4×4)
- Steering
- articulated, fully hydraulic
- Working speed
- 5–10 km/h
- Maximum travel speed
- 26 km/h
- Gradeability
- up to 20 %
- Tyres
- 195/75R16, 4 pcs
- Tyre pressure
- 0.46 MPa
Cleaning and capacity
- Cleaning working width
- 1,600–2,400 mm
- Cleaning capacity
- up to 24,400 m²/h
- Cleaning efficiency
- 96 %
- Waste container capacity
- 1.5 m³
- Brushes
- two professional rotating disc brushes, Ø 850 mm
- Continuous working time
- up to 20 h
Water tank and gun
- Water tank capacity
- 300 l
- High-pressure water gun — pressure
- up to 140 bar
- High-pressure water gun — flow
- 8.3 l/min
- Hose length
- 10 m
Dimensions
- Length (with brush)
- 4,285 mm
- Length (without brush)
- 4,070 mm
- Width
- 1,240 mm
- Height
- 2,040 mm
- Wheelbase
- 2,040 mm
- Minimum turning radius
- 6,900 mm
- Empty vehicle weight
- 2,370 kg
- Gross vehicle weight (GVW)
- 3,980 kg
Cab and class
- Cab
- two-person
- Class
- Diesel municipal street sweeper
Gallery
See the SRM 1500.
Configured for your route.
The SRM 1500 ships as standard with two rotating disc brushes, a high-pressure water gun and a 300 l water tank. For year-round municipal work there are attachments: a high-pressure washing system (RHA-1000), a salt spreader (RSP-1300) and a snow plough (TX160). Tell us which surfaces you maintain and how many shifts you run — we'll recommend the right configuration.

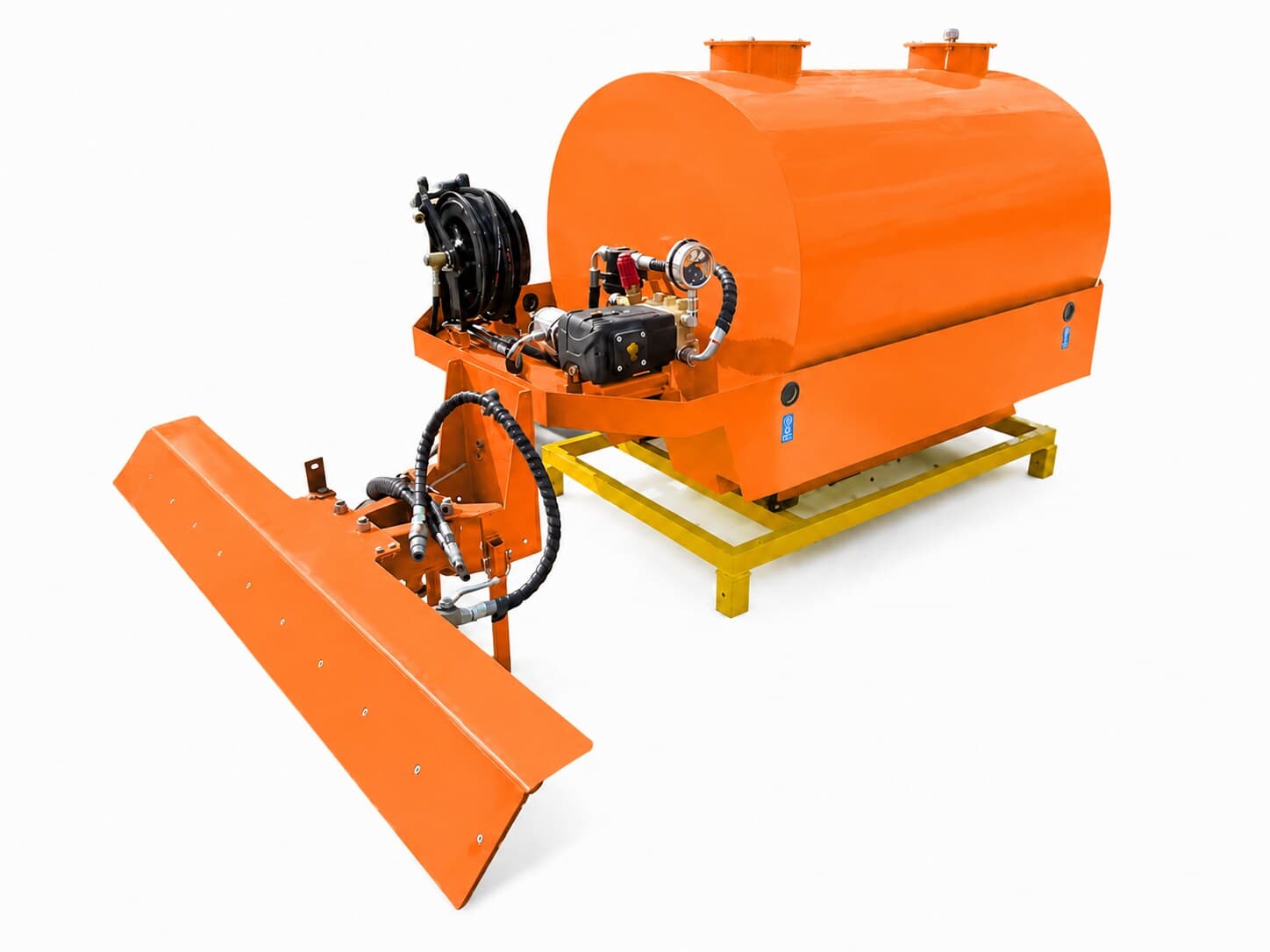

RHA-1000
High-pressure washing system — 1,000 l tank, up to 135 bar

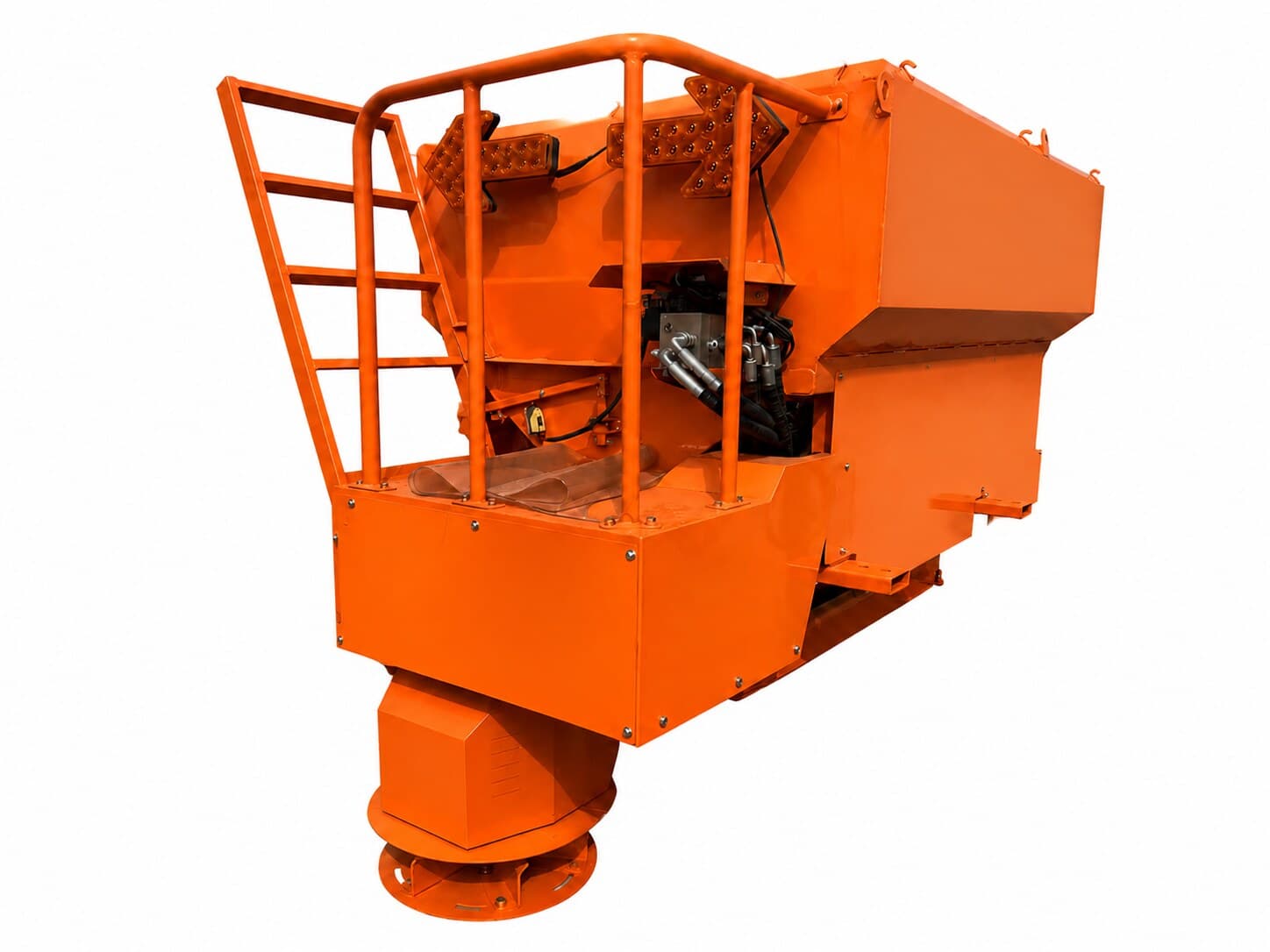

RSP-1300
Salt spreader — 1.3 m³ capacity, hydraulic drive

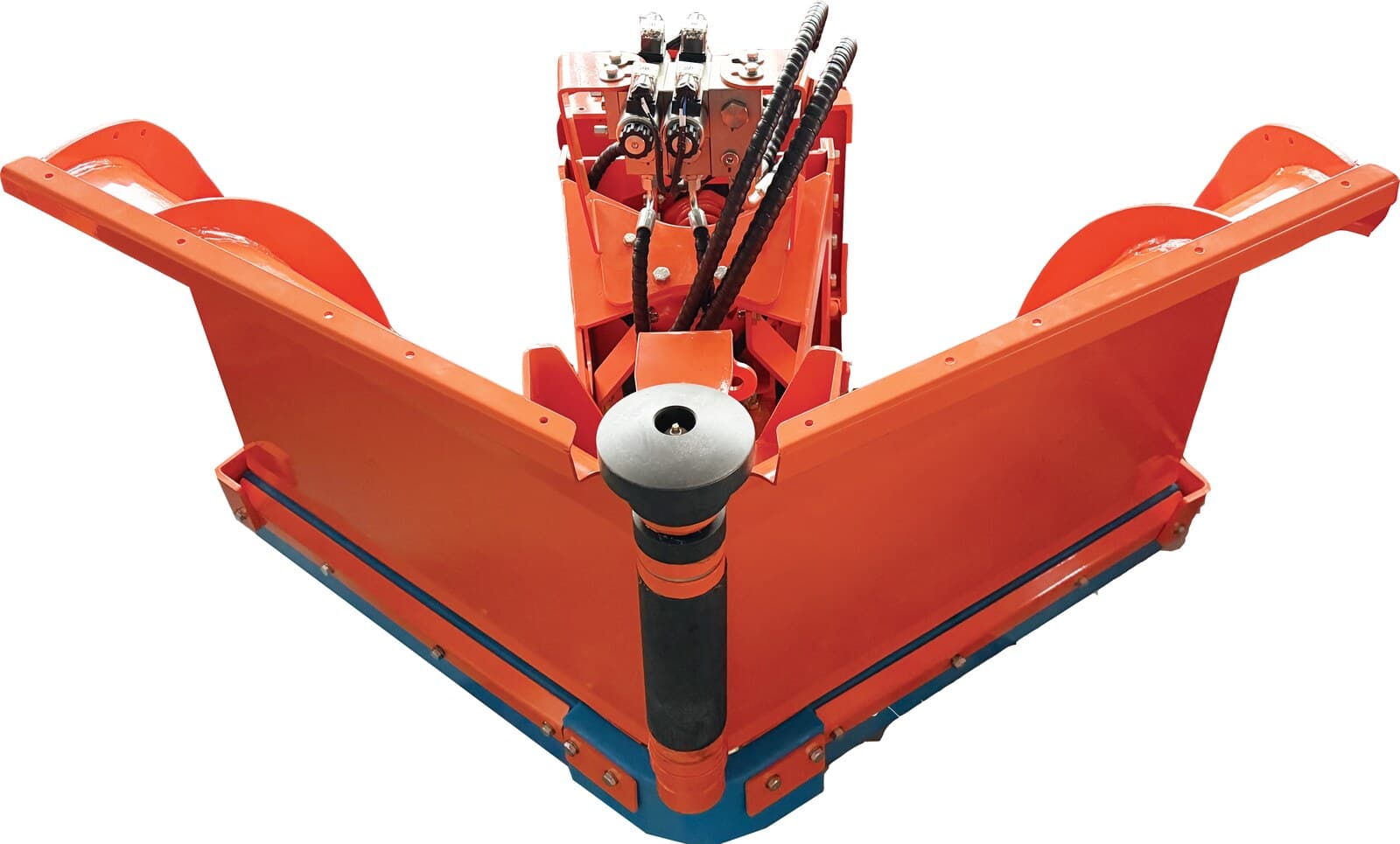

TX160
Snow plough — hydraulic angling 70° left/right
Configure your SRM 1500.
Send us the surfaces you maintain, your daily route length and your shift schedule. We'll put together a quote, a recommended configuration and the right selection of attachments for your streets and the way you work.
