Reinmatic
RIDE-ON SWEEPER FOR INDOOR AND OUTDOOR SURFACES

KRM 90. Ride-on sweeping that keeps dust down.

A ride-on sweeper for large indoor and outdoor surfaces. With a 1.28 m working width, productivity up to 5,000 m²/h, a 90 L waste hopper, a 30 L water tank, vacuum system, water spray, and dust control, it covers halls, warehouses, production areas, logistics centers, parking areas, and loading ramps.

Key performance
5,000 m²/h
Productivity
128 cm
Working width
90 L
Waste hopper
48 V
Battery system

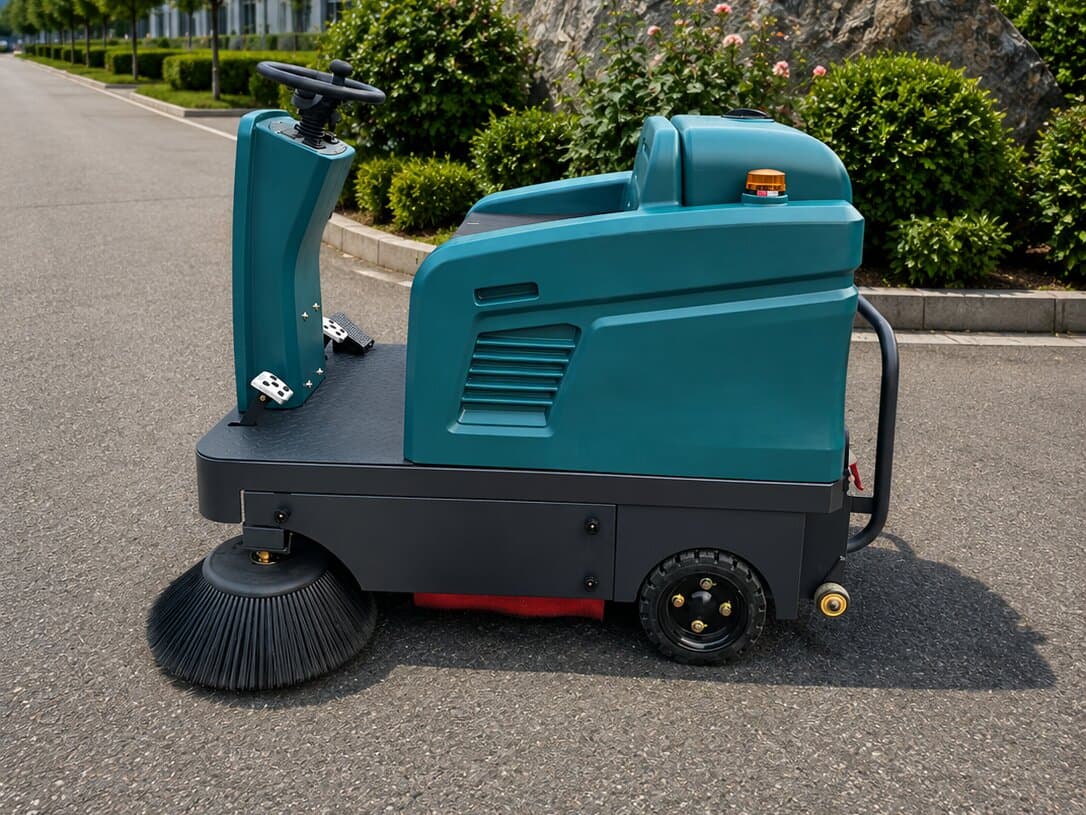

Side profile of the teal Reinmatic KRM 90 ride-on sweeper on asphalt, side brush, operator seat, and rear drive wheel visible

Where the KRM 90 belongs.

The KRM 90 cleans where a scrubber-dryer has no place, and finishes in a fraction of the time surfaces that would take hours to maintain by hand. A 1.28 m working width delivers up to 5,000 m²/h, while the vacuum system pulls fine dust and small debris into a large 90 L hopper. Integrated water spray from a 30 L tank helps keep particles at floor level as you work. With seated operation and runtime of up to 5 hours, the KRM 90 maintains warehouses, production halls, logistics centers, parking areas, and other large indoor and outdoor surfaces with equal ease.

Applications

  • Factory and production halls
  • Warehouses and distribution yards
  • Industrial zones and access roads
  • Parking areas and hardstands
  • Parks and public spaces
  • Mixed indoor and outdoor facilities

Sweep, vacuum, and spray — in a single pass.

The KRM 90 earns its place by doing three jobs at once. It gathers debris, vacuums fine dust, and sprays water to keep the working surface tidy as you go. It is as effective in warehouses, production halls, and logistics centers as it is on parking areas, loading ramps, and other outdoor surfaces.

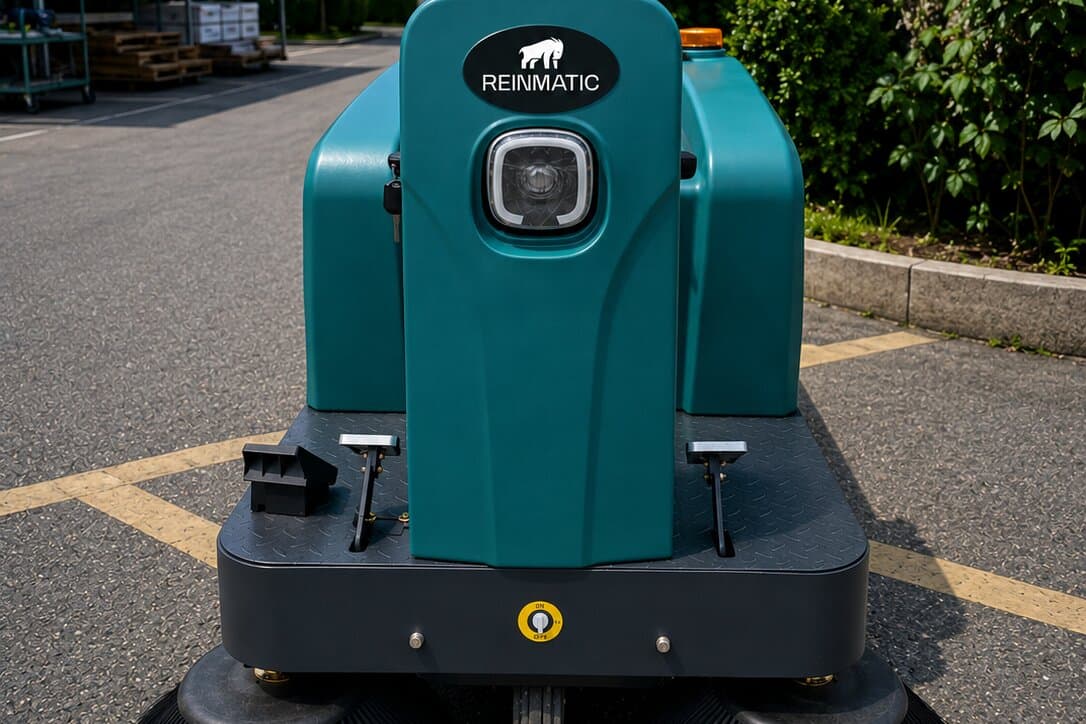

Front view of the Reinmatic KRM 90 with the REINMATIC badge on the steering column, twin side brushes spanning the 1.28 m working width

5,000 m²/h across a 1.28 m working width.

A 490 mm central brush and two 500 mm side brushes deliver a 1,280 mm working width. With productivity up to 5,000 m²/h, the KRM 90 covers large surfaces fast — the kind that would take hours by hand. Seated operation lets the operator maintain warehouses, industrial yards, logistics centers, and parking areas with less physical effort and more output per shift.

Vacuuming that keeps dust under control.

A 500 W fan motor draws fine dust and small debris into a large 90 L hopper, while the water-spray system with its 30 L tank helps keep particles at floor level as you work. The KRM 90 keeps warehouses, production halls, logistics centers, and outdoor surfaces cleaner even in demanding conditions. An automatic vibrating filter shakes itself continuously during operation to keep airflow stable and suction steady across the whole shift.

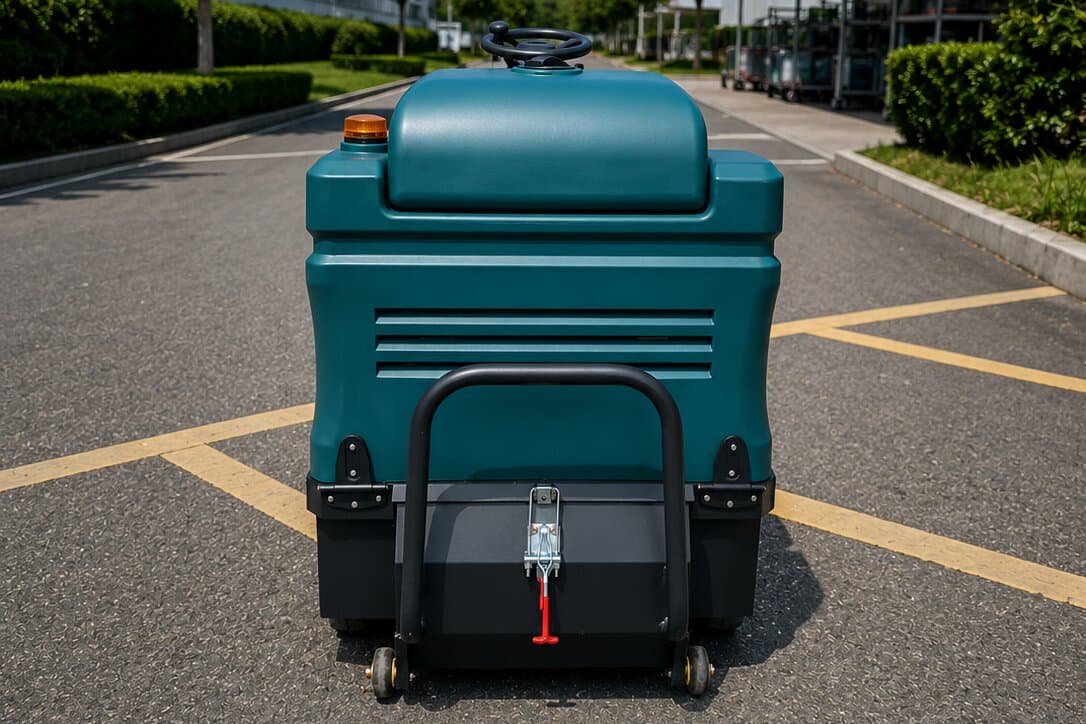

Rear view of the Reinmatic KRM 90 showing the 90 L waste hopper with its release latch and protective bar

One machine for indoor and outdoor surfaces.

Runtime of up to 5 hours keeps large surfaces covered without stopping to recharge. The drive system handles unevenness and obstacles up to 80 mm high, so the KRM 90 moves just as confidently through warehouses, industrial yards, loading ramps, and parking areas. Sealed electrical assemblies deliver reliable operation across varied conditions, from dry halls to wet outdoor surfaces.

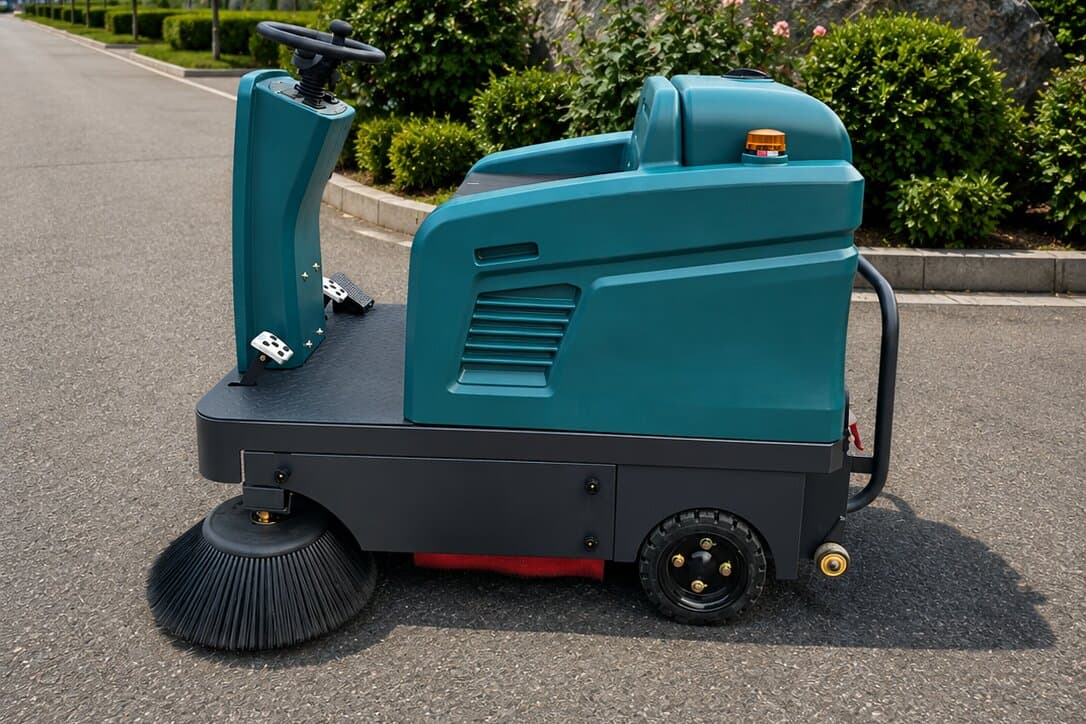

Side profile of the teal Reinmatic KRM 90 ride-on sweeper on an outdoor asphalt surface, side brush and drive wheel visible

From tight aisles to open surfaces.

A small turning radius makes it easy to work through warehouse aisles and narrow zones. Rugged wheels and the ability to clear obstacles up to 80 mm let the KRM 90 cross thresholds, ramps, and uneven outdoor surfaces safely — so it works just as well in a hall, a logistics center, or open space outdoors.

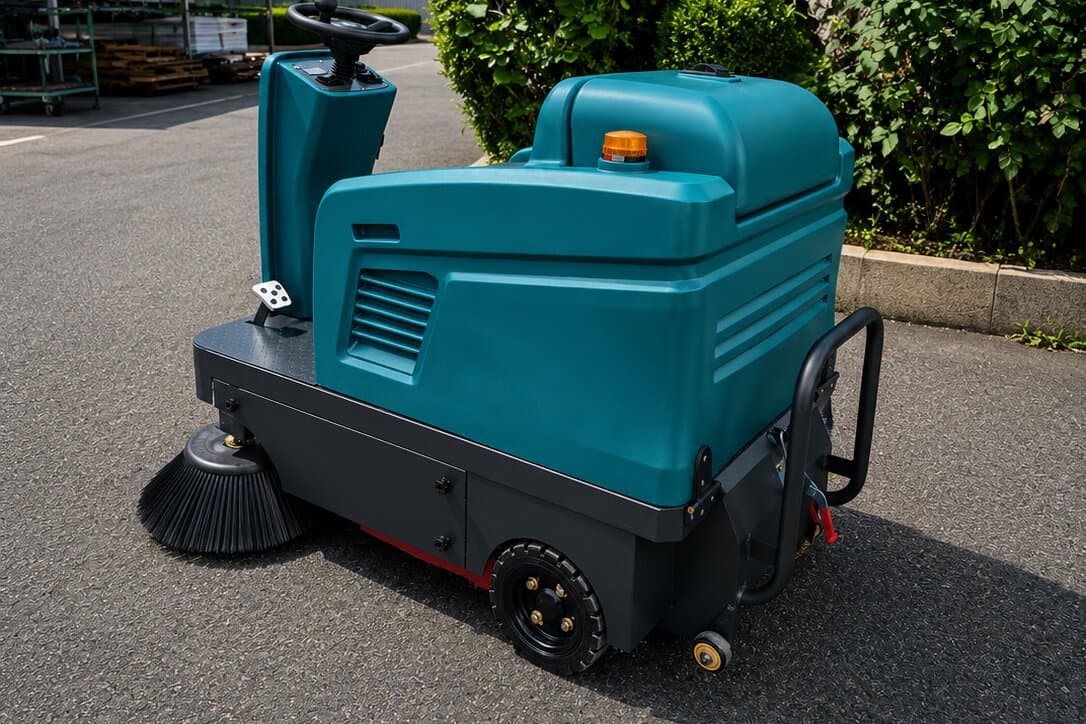

Rear three-quarter view of the Reinmatic KRM 90 crossing an asphalt yard, side brush and drive wheels visible

Functions and intelligent capabilities

The full capability set from the Reinmatic catalog — every built-in function the KRM 90 uses to gather debris, vacuum, and control dust across large indoor and outdoor surfaces.

Functions and capabilities

  • Sweeping, vacuuming, and water spray
  • Intelligent control system
  • Automatic vibrating filter cleaning
  • Automatic filter shaking The filter shakes itself automatically during operation to keep airflow stable and suction steady even over longer runs in dusty conditions.
  • A rugged chain drive transfers power reliably and efficiently, even under heavy use on large surfaces and demanding floors.
  • Small turning radius
  • Clears obstacles up to 80 mm
  • Waterproof electrical connectors

Intelligent functions

  • Intelligent dust control The water-spray system helps keep particles at floor level as you work, creating a tidier and more comfortable working environment.
  • Professional automatic filter-shaking system Keeps the filter clean automatically during operation, helping airflow stay stable and suction steady across the whole shift.
  • Smart airflow management Optimizes the flow of air through the vacuum system for steadier operation, better dust control, and more efficient debris collection.
  • Dynamic brush control Adjusts brush action to surface conditions for steadier debris pickup and even performance throughout the run.
  • Industrial system for demanding operating conditions
  • Intelligent suction and dust control
  • Operator ride comfort
  • Adaptation to uneven surfaces
  • Maximum productivity on large surfaces
  • Controlled operating stability
  • Water-spray system for dust control
  • Automatic dust shaking from the filter
  • Integrated electrical system
  • Control system for all-day operation

Advantages

  • Large cleaning width
  • Professional electric operation
  • Efficient dust control
  • Suited to indoor and outdoor use
  • Simple operation
Specs by system

Technical specifications

Power

Power source
Battery (48 V / 4 × 45 Ah)
Battery
48 V / 4 × 45 Ah
Runtime
2–3 h
Drive motor
650 W

Mechanical

Working width
1,280 mm
Central brush
490 mm
Side brushes
2 × 500 mm
Fan motor
500 W
Filter vibration motor
100 W
Water pump
50 W
Obstacle clearance
80 mm

Cleaning

Productivity
5,000 m²/h
Water tank
30 L
Waste hopper
90 L
Working speed
0–10 km/h

Dimensions

Length
1,470 mm
Width
1,200 mm
Height
1,220 mm
Net weight
285 kg

Compliance

Class
Ride-on sweeper-vacuum, battery
Operator
Seated ride-on
Standards
ISO 9001, CE, RoHS
Gallery

See the KRM 90.

Ready for large indoor and outdoor areas.

The KRM 90 combines ride-on comfort, a 1.28 m working width, a 30 L water tank, a vibrating filter, and a 90 L waste hopper — for efficient sweeping across large indoor and outdoor areas.

Request the accessories list →

Configure your KRM 90

Send us the details of the surface you maintain, the floor type, and your operating conditions. Based on your requirements we will prepare a quote with a recommended configuration of brushes, filters, and additional equipment so the KRM 90 delivers maximum performance in your facility.
